The Bayfield-class attack transport was a class of US Navy attack transports that were built during World War II. [USS Elmore (APA-42) was a Bayfield-class ship.]

With the entry of the United States into the war, it was quickly realized that amphibious combat operations on hostile shores would be required, and that specialized ships would be needed for the purpose. The so-called "attack transport" ship type (hull classification symbol APA) was developed to meet this need. Attack transports were converted from standard transport vessels by being upgraded with extra firepower, and outfitted with a number of smaller integral landing craft (such as LCVPs and LCMs) with which amphibious assaults could be conducted.

The first attack transports began to enter service in 1942 and were built ad hoc from a host of different types. The first class to be built in substantial numbers was the Bayfield class, which began to enter service in 1943. The early vessels were converted from existing cargo or transport ships, later ones built as attack transports from the keel up.

Overview

Bayfield-class vessels were based on the large Type C3 passenger and cargo ship standard set by the US Maritime Commission. Originating in 1938, The C3 standard was designed to produce modern, good quality cargo and passenger ships to replace the ageing US merchant fleet, and which could also be readily converted into naval auxiliary vessels in the event of war. After the war broke out however, the need for shipping became so great that the US was forced to come up with designs that could be more quickly manufactured. Thus the C3-based Bayfield class and its predecessors were eventually outnumbered by the Haskell class which was based on the simpler Victory ship design.

Description

Bayfield-class vessels were based upon the C3-S-A2 design standard. The basic design had to undergo a number of changes in order to meet the attack transport specification.

Troop accommodation

In order to accommodate the troops, two cargo holds amidships had to be converted into accommodation facilities. This was achieved by dividing each hold into three decks, and then building a number of passageways along each deck. Along both walls of each passageway, bunk-beds tiered five high were installed, and each bunk was only thirty inches wide.

The troops were provided with their own galley and mess hall separate from that of the ship's crew, but they had no dining hall and used their own mess gear to eat. A sick bay and dental clinic were also provided. The troop commander had his own private cabin and office, which was fitted with a loudspeaker system from which he could directly address the men under his command. In order to keep the soldiers entertained during their long, crowded voyages, music and other entertainment could be piped to the troop compartments.

Ballast

Because a troop transport carries less weight than a cargo ship, it was also found to be useful to place concrete in the bottom of the cargo holds in order to improve the ship's comfort, safety and performance.

Weaponry

Since attack transports would be conducting operations off hostile shores, they had a greater requirement for armament than ordinary transports, particularly in regards to antiaircraft defense. The Bayfield-class vessels were well outfitted in this regard. Each vessel was fitted with a pair of 5"/38 caliber dual purpose guns, one fore and one aft. The ships were also fitted with between two and four twin 40 mm antiaircraft mounts (early examples came with two quad 1.1" gun mounts instead), plus two single 40 mm mounts and eighteen 20 mm mounts as standard.

As the war progressed, the 20 mm cannon were found to be less effective than the 40 mm, and the later Gilliam and Haskell classes dispensed with some of these mounts. The later classes also had only one 5-inch (127 mm) gun instead of two.

Production

A total of 34 Bayfield-class vessels were produced between 1942 and 1944 – 20 by Ingalls Shipbuilding of Pascagoula, Mississippi and the remaining 14 at the San Francisco shipyard of Western Pipe & Steel – making the Bayfield class the second most numerous attack transport class behind the Haskell class.

Service

Bayfield-class vessels served in both the Atlantic and Pacific theaters of war. Some went on to see service in the Korean and Vietnam wars.

Of the 388 attack transports (APA and AKA) of all types built, the last to see service with the US Navy was USS Chilton, a Bayfield-class vessel built by Western Pipe & Steel which was launched on 29 December 1942, first commissioned on 7 December 1943 and decommissioned in August 1970. She was finally struck from the Navy register on 1 July 1972.

Source: Wikipedia

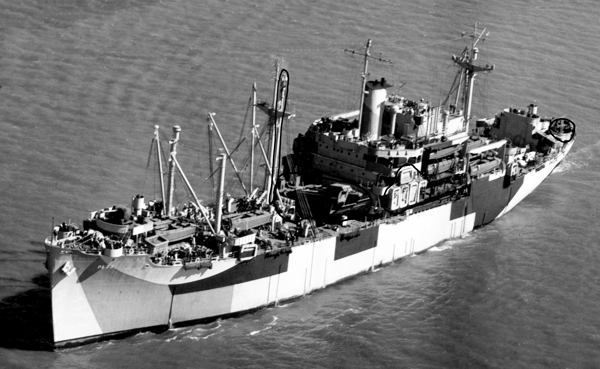

USS Bayfield (APA-33), lead ship of the Bayfield class, 29 October 1944

Class Overview


Name:

Builders:


Operator:

Proceeded by:

Succeeded by:

In commission:

Completed:


Bayfield
class

Ingalls Shipbuilding (x 20)
Western Pipe & Steel (x 14)

United States Navy

Ormsby class

Sumter class

1943–1945 – 1946–1970

34

General Characteristics


Class and type:

Displacement:

Length:

Beam:

Draft:

Propulsion:



Speed:

Boats & landing
craft carried:


Capacity:


Complement:



Armament:






Note:


Bayfield
class attack transport

78,100 tons, 16,100 fully loaded

492 ft 6 in (150.11 m)

69 ft 6 in (21.18 m)

26 ft 6 in (8.08 m)

Geared turbine drive,[1] 2 × D-type boilers,[2] single propeller, designed shaft horsepower 8,500

18 knots (33 km/h; 21 mph)

12 × LCVP
4 × LCM
3 × LCP(L)

4,500–4,800 tons
(175,000–200,000 cubic feet).

Crew: 51 officers 524 enlisted
Flag: 43 officers, 108 enlisted
Troops: 80 officers, 1,146 enlisted

2 × single 5 inch 38 caliber dual purpose guns, one fore and one aft
2–4 × twin 40mm cannon or 2 × quad 1.1"/75 caliber gun mounts
2 × single 40 mm cannon
18 × single 20mm cannon

MCV hull type: C3-S-A2

Ships in Class (34)

Alpine
Barnstable
Bayfield
Bolivar
Burleigh
Callaway
Cambria
Cavalier
Cecil
Chilton
Clay
Custer
Dade
DuPage
Elmore
Fayette
Fremont

Goodhue
Goshen
Grafton
Guilford
Hamblen
Hampton
Hanover
Hansford
Henrico
Knox
Lamar
Leon
Mendocino
Montour
Riverside
Sitka
Westmoreland
